GHEL4001-OR

Eska™ Premier 1.0 mm Core Simplex Optical Fiber,
2.2 mm OD Polyethylene Buffered,
3.85 mm OD Polyolefine Elastomer Sheathed,
V-2Y Y 1P980/1000


GHEL4001-OR Eska™ Premier 1.0 mm Core Simplex Optical Fiber,<br>2.2 mm OD Polyethylene Buffered,<br>3.85 mm OD Polyolefine Elastomer Sheathed,<br>V-2Y Y 1P980/1000

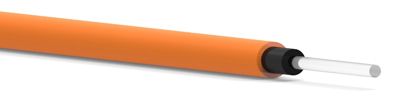

Sectional View

Application: Indoors/outdoors where high chemical resistance and durability in outdoor UV light conditions are required.

Manufacturer: Mitsubishi Chemical Co.

Part Number: GHEL4001-OR

Alternative Product: TC-1000-3.85P(OR)



Part Number: GHEL4001-OR
Price (500 m per spool)

 1 to 2 $ 1,843.08
 3 to 9 $ 1,787.78
 10 to 19 $ 1,711.43
 20+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: 81 0140
Price (per meter)

  $ 8.00
Quantity



Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 13.8
  Buffer/Jacket
Material and Color Polyethylene (black)/Polyolefine Elastomer (orange)
Indication on Jacket None

Unit Value
Outer Diameter mm 3.85 ± .1
Fiber Tensile Strength N
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 60 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .19 Max
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .21 Max
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 25
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m 0.4
