Home > Optical Fiber and Cable > Asahi Kasei Single-Core Cable > TC-1000-3.85P(OR)

TC-1000-3.85P(OR)

Asahi Kasei General Purpose Simplex,
2.2 mm OD Polyethylene Buffered,
3.85 mm OD Polyester Elastomer Jacket,
V-2Y Y 1P980/1000


TC-1000-3.85P(OR) Asahi Kasei General Purpose Simplex, Industrial Optical Cable, Polyester Elastomer Jacket

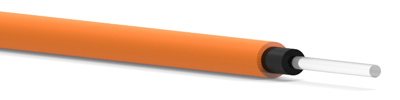

Sectional View

Application: Indoors/outdoors where high chemical resistance and durability in outdoor UV light conditions are required.

Manufacturer: Asahi Kasei

Part Number: TC-1000-3.85P(OR)

Alternative Product: GHEL-4001-OR


Part Number:TC-1000-3.85P(OR)
Price (500 m per spool)

 1 to 2 $ 1,778.57
 3 to 9 $ 1,729.17
 10 to 19 $ 1,677.29
 20+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Part Number: 81 0598
Price (per meter)

   $ 7.50
Quantity



Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 12.5
-->
  Buffer/Jacket
Material and Color Polyethylene (black)/Polyester Elastomer (orange)
Indication on Jacket None

Unit Value
Outer Diameter mm 3.85 ± .10
Fiber Tensile Strength N 180
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 25
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 180
