GHV4002

Eska™ Premier 1.0 mm Core Duplex Optical Cable, 2.2 mm OD Polyvinyl Chloride Jacket,
V-Y 2x1P980/1000


GHV4002 Eska™ Premier 1.0 mm Core Duplex Optical Cable, 2.2 mm OD Polyvinyl Chloride Jacket,<br>V-Y 2x1P980/1000

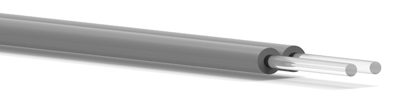

Sectional View

Application: General purpose duplex cable for industrial data applications, UL rating VW-1 Style 5238

Manufacturer: Mitsubishi Chemical Co.

Part Number: GHV4002

Alternative Product: TCV-1000W


Part Number: GHV4002
Price (500 m per spool)

 1 to 2 $ 1,080.00
 3 to 9 $ 1,008.00
 10 to 19 $ 945.00
 20 to 39 $ 910.84
 40 to 99 $ 832.24
 100+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Part Number: 81 0111
Price (per meter)

   $ 3.87
ON BACKORDER

Meets or exceeds the specifications for HFBR-QUD-500 and HFBR-PUD-500 Call for quote for 100spools or more.
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 2

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 11
  Buffer/Jacket
Material and Color Polyvinyl chloride (gray)
Indication on Jacket E89328 (either A or B) Mitsubishi Chemical AWM 5237 80C VW-1 GHV 4002; pink

Unit Value
Outer Diameter mm 2.2 x 4.4 ± .1
Fiber Tensile Strength N 140
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 40° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 40° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C + 75 Max.
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .17 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m .19 Max
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 25
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 140
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times 2
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]		 N.m 0.4
