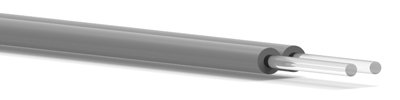

TCV-1000W
Asahi UL-rated, General Purpose Duplex,
|
Application: Industrial duplex cable for general purpose industrial temperature data and sensor applications. Lowest cost of all the industrial cable options. Manufacturer: Asahi Kasei Part Number: TCV-1000W Alternative Product: GHV4002 |
Purchase by the Spool
Part Number:
TCV-1000W
Spool Length:
500 m spool
TCV-1000W
Spool Length:
500 m spool
| Quantity | Unit Price |
|---|---|
| 1 to 2 | $ 807.14 |
| 3 to 9 | $ 725.00 |
| 10 to 14 | $ 669.23 |
| 15 to 19 | $ 649.25 |
| 20+ | Call for Quote |
Country-of-origin tariff
added at checkout.
added at checkout.
| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
| -->
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 40° ~ 80° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 40° ~ 80° C | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | N/R | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .16 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | N/R | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 30 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 180 | ||
Polishing Puck: 41 0151
