SH2002

Super Eska™ Duplex 0.5 mm Core Optical Fiber,
1.0 mm OD Polyethylene Jacket,
V-2Y 2x1P485/500


SH2002 Super Eska™ Duplex 0.5 mm Core Optical Fiber,<br>1.0 mm OD Polyethylene Jacket,<br>V-2Y 2x1P485/500

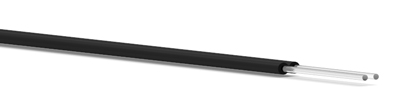

Sectional View

Application: General purpose duplex cable for sensor applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: SH2002

Alternative Product: DC-500W-10


Part Number: SH2002
Price (500 m per spool)

 1 to 2 $ 700.00
 3+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Special order
Box Size (mm): 365 x 365 x 160
Gross Weight* (kg): 2.6
* cable + Spool + box

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 2

Unit Value
Core Diameter μm 455 - 515
Cladding Diameter μm 470 - 530
Approximate Weight g/m 1.6
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket White line on One of the pair

Unit Value
Outer Diameter mm 1.0 x 2.0 ± .1
Fiber Tensile Strength N 36
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C + 60 Max.
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .21 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m .23 Max.
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 15
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 36
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times 2
