DC-500W-10

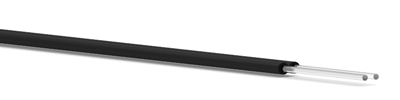

Asahi General Purpose Duplex, |
Application: Duplex cable for general purpose commericial temperature data and sensor applications. Manufacturer: Asahi Kasei Part Number: DC-500W-10 Alternative Product: SH2002 |
Purchase by the Spool
Part Number:
DC-500W-10
Spool Length:
1000m per spool
DC-500W-10
Spool Length:
1000m per spool
| Quantity | Unit Price |
|---|---|
| 1 to 2 | $ 1,107.69 |
| 3 to 4 | $ 1,028.57 |
| 5 to 9 | $ 933.33 |
| 10 to 15 | $ 861.54 |
| 16 to 19 | $ 835.82 |
| 20+ | Call for Quote |
Country-of-origin tariff
added at checkout.
added at checkout.
| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
| -->
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55° ~ 70° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55° ~ 70° C | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | N/R | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .20 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | N/R | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 15 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 40 | ||
