Home > Optical Fiber and Cable > Asahi Kasei E-Materials > Asahi Kasei Multi-Core Cable > MCQ-1200

MCQ-1200

613-core 1.2 mm Fused Multi-core Simplex Cable,
2.2 mm OD Polyethylene Jacket

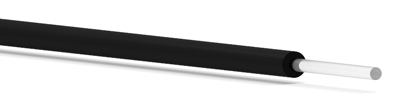

MCQ-1200 613-core Fused Multi-core Simplex Cable, Polyethylene Jacket

MCQ-1200

Sectional View

Application:

Manufacturer: Asahi Kasei

Part Number: MCQ-1200


Purchase by the Spool

Part Number:
MCQ-1200

Spool Length:
Quantity Unit Price
1+ $ 0.00


$0.00


  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1
Number of Cores 613

Unit Value
Cladding Diameter μm 2130-2290
Approximate Weight g/m 3.7
  Buffer/Jacket
Material and Color Polyethyelene (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 90
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 60° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 60° C
Mechanical
Characteristics
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 90
