81 0093

2 mm Fluorescent Red Polystyrene

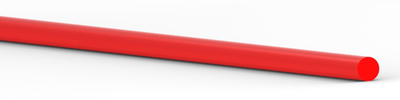

81 0093 2 mm Fluorescent Red

Sectional View

Application: Artworks and displays

Part Number: 81 0093


Purchase by the Stick

Part Number: 81 0093
1–49 $ 12.00
50+ Call for Quote

STK is 1.52 meters (5 foot) long.

LIMITED STOCK.
PLEASE CONTACT US FOR AVAILABILITY

  Structure
Core Material Polystyrene
Cladding Material Acrylic
Core Refractive Index 1.60
Refractive Index Profile Step-index
Numerical Aperture .58
Number of Fibers 1

Unit Value
Core Diameter μm 1624 - 1684
Cladding Diameter μm 1970 - 2030
Approximate Weight g/m 3.14
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C -20 ~ 50
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C -20 ~ 50
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C n/r
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m 635
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m n/r
