Home > All Products > Optical Fiber and Cable > Polymicro Technologies - Molex LLC > FIP400440480

FIP400440480

Polymicro Optical Fiber,
Ultra Low -OH Silica/Silica 400/440 Polymicro Ultra Low -OH Silica/Silica 400/440 Optical Fiber

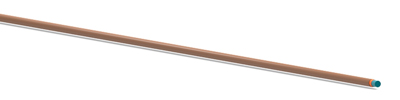

FIP400440480 Polymicro Optical Fiber,<br>Ultra Low -OH Silica/Silica 400/440

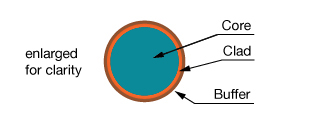

Sectional View

Application:

Manufacturer: Polymicro Technologies

Part Number: FIP400440480


Part Number: FIP400440480
Price (per meter)


 1 to 99 $ 10.22
 100 to 499 $ 8.87
 500 to 999 $ 7.72
 1,000 to 1,999 $ 7.26
 2,000+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
  Box Size (mm):
  Gross Weight* (kg): 0

No set spool lengths

  Structure
Core Material Ultra Low -OH Silica
Cladding Material Doped Silica
Refractive Index Profile Step-index
Number of Fibers 1

Unit Value
Core Diameter μm 400 ± 8
Cladding Diameter μm 440 ± 9
  Buffer/Jacket
Material and Color Polyimide Buffer
Indication on Jacket None

Unit Value
Outer Diameter mm .480 ± .007
Fiber Tensile Strength N
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C -65 ~ +300
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C -65 ~ +300
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 22.1
