FIP320385415

Polymicro Ultra Low -OH Silica/Silica 320/385 Optical Fiber


FIP320385415 Polymicro Ultra Low -OH Silica/Silica 320/385 Optical Fiber

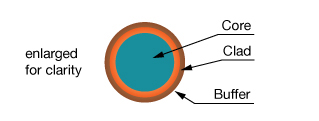

Sectional View

Application:

Manufacturer: Polymicro Technologies

Part Number: FIP320385415


Part Number: FIP320385415
Price (per meter)


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
  Box Size (mm):
  Gross Weight* (kg): 0

No set spool lengths.

  Structure
Core Material Ultra Low -OH Silica
Cladding Material Doped Silica
Refractive Index Profile Step-index
Number of Fibers 1

Unit Value
Core Diameter μm 320 ± 8
Cladding Diameter μm 385 ± 8
  Buffer/Jacket
Material and Color Polyimide Buffer
Indication on Jacket None

Unit Value
Buffer Diameter μm 415 ± 10
Fiber Tensile Strength N
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C -65 ~ +300
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C -65 ~ +300
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 19.3
