SK-30

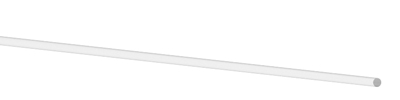

Super Eska™ High-Performance Plastic Optical Fiber, |
Application: General purpose fiber for lighting applications Manufacturer: Mitsubishi Chemical Co. Part Number: SK-30 Alternative Product: DB-750 |
Purchase by the Spool
Part Number:
SK-30
Spool Length:
2700 m per spool
SK-30
Spool Length:
2700 m per spool
| Quantity | Unit Price |
|---|---|
| 1 to 2 | $ 1,088.06 |
| 3 to 4 | $ 1,041.43 |
| 5 to 9 | $ 1,012.50 |
| 10 to 19 | $ 789.23 |
| 20+ | Call for Quote |
Country-of-origin tariff
added at checkout.
added at checkout.
Lead time: up to 3-4 months
| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -55° ~ 70° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -55° ~ 70° C | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | + 60 Max. | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .15 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | Not rated | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 15 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 32 | ||
