LH4001-1.3

Eska™ Multi-core 1.0 mm Core Simplex
High-Performance Plastic Optical Fiber,
1.3 mm OD Polyethylene Jacketed

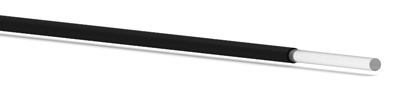

LH4001-1.3 Eska™ Multi-core 1.0 mm Core Simplex<br>High-Performance Plastic Optical Fiber,<br>1.3 mm OD Polyethylene Jacketed

Sectional View

Application: Fused mutlicore light guide for small bend radii sensor applications with 1.3 mm jacket diameter

Manufacturer: Mitsubishi Chemical Co.

Part Number: LH4001-1.3



Part Number: LH4001-1.3
Price (1000 m per spool)

 1 to 2 $ 7,039.30
 3 to 9 $ 6,599.34
 10 to 19 $ 6,117.54
 20 to 39 $ 5,212.80
 40 to 99 $ 4,749.09
 100+ $ 4,223.34

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.50
Number of Fibers 1

Unit Value
Core Diameter μm 151 x 75
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 1.5
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 1.3 ± .07
Fiber Tensile Strength N 65
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 40° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C 0° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 60 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .40 Max
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .45 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 2
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 65
