LH2001

Eska™ Multi-core 0.5 mm Core Simplex
High-Performance Plastic Optical Fiber,
1.0 mm OD Polyethylene Jacketed

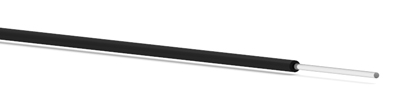

LH2001 Eska™ Multi-core 0.5 mm Core Simplex<br>High-Performance Plastic Optical Fiber,<br>1.0 mm OD Polyethylene Jacketed

Sectional View

Application: Fused mutlicore light guide for small bend radii sensor applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: LH2001


Part Number: LH2001
Price (1000 m per spool)

 1 to 2 $ 7,039.30
 3 to 9 $ 6,599.34
 10 to 19 $ 6,009.54
 20 to 39 $ 5,212.80
 40 to 99 $ 4,749.09
 100+ $ 4,223.34

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 151 x 37.5
Cladding Diameter μm 470 – 530
Approximate Weight g/m .80
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket White Line

Unit Value
Outer Diameter mm 1.0 ± .05
Fiber Tensile Strength N 18
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 40° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C 0° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C + 60 Max.
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .60 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m .65 Max.
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 1
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 18
