MH4002

Eska™ Mega Duplex 1.0 mm Core
High-Performance Plastic Optical Fiber,
2.2 mm OD Polyethylene Jacketed

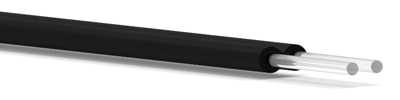

MH4002 Eska™ Mega Duplex 1.0 mm Core <br>High-Performance Plastic Optical Fiber,<br>2.2 mm OD Polyethylene Jacketed

Sectional View

Application: High bandwidth duplex cable for commercial and industrial data communications

Manufacturer: Mitsubishi Chemical Co.

Part Number: MH4002


Part Number: MH4002
Price (500 m per spool)

 1 to 2 $ 1,635.43
 3 to 9 $ 1,612.29
 10 to 24 $ 1,526.40
 25 to 49 $ 1,501.20
 50+ $ 1,461.83

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Part Number: 81 0143
Price (per meter)

   $ 2.25
Request for quote. This is a very specialized product. If you have a high volume requirement, please Contact Us to negotiate pricing.
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.3
Number of Fibers 2

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 8.0
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket Eska™ MEGA; Pink

Unit Value
Outer Diameter mm 2.2 x 4.4 ± .1
Fiber Tensile Strength N 140
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C + 75 Max.
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .16 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m .18 Max.
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 25
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 140
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times 2
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]		 N.m 0.4
