MH4001

Eska™ Mega 1.0 mm Core Simplex
High-Performance Plastic Optical Fiber,
2.2 mm OD Polyethylene Jacketed

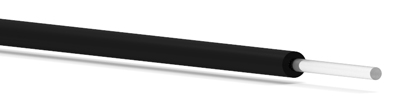

MH4001 Eska™ Mega 1.0 mm Core Simplex<br> High-Performance Plastic Optical Fiber,<br> 2.2 mm OD Polyethylene Jacketed

Sectional View

Application: High bandwidth simplex cable for commercial and industrial data communications

Manufacturer: Mitsubishi Chemical Co.

Part Number: MH4001



Part Number: MH4001
Price (500 m per spool)

 1 to 2 $ 1,377.81
 3 to 9 $ 1,308.92
 10 to 19 $ 1,159.11
 20 to 39 $ 1,101.16
 40 to 99 $ 1,053.00
 100+ $ 972.00

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: 81 0142
Price (per meter)

  $ 2.21
Request for quote. This fiber cable is a very specialized product. If you have a high volume requirement, please contact us to negotiate pricing.
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.3
Number of Fibers 1

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 4.0
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket Eska™ MEGA; Pink

Unit Value
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 70
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 75 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .16 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .18 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 25
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 70
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m 0.4
