GHV4001

Eska™ Premier 1.0 mm Core Optical Cable,
2.2 mm OD Polyvinyl Chloride Jacket,
V-Y 1P980/1000


GHV4001 Eska™ Premier 1.0 mm Core Optical Cable,<br>2.2 mm OD Polyvinyl Chloride Jacket,<br>V-Y 1P980/1000

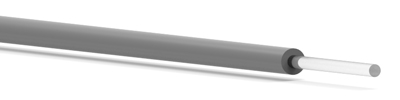

Sectional View

Application: General purpose simplex cable for industrial data applications, UL rating VW-1 Style 5237

Manufacturer: Mitsubishi Chemical Co.

Part Number: GHV4001

Alternative Product: TCV-1000



Part Number: GHV4001
Price (500 m per spool)

 1 to 2 $ 525.00
 3 to 9 $ 500.00
 10 to 19 $ 484.62
 20 to 39 $ 470.00
 40 to 99 $ 450.00
 100+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: 81 0110
Price (per meter)

  $ 2.30
Quantity



CAN BE ON BACKORDER

Meets or exceeds the specifications for HFBR-QUS-500 and HFBR-PUS-500
Box Size (mm):
Gross Weight* (kg): 0
* cable + Spool + box

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 5.0
  Buffer/Jacket
Material and Color Polyvinyl chloride (gray)
Indication on Jacket E89328 (either A or B) Mitsubishi Chemical AWM 5237 80C VW-1 GHV 4001; pink

Unit Value
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 70
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 75 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .17 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .19 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 25
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 70
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m 0.4
