GHEV4002

Eska™ Premier Duplex 1.0 mm Core Optical Fiber,
2.2 mm OD Polyethylene Jacket,
5.0 mm OD Polyvinyl Chloride Sheathed,
V-2Y Y 2P980/1000


GHEV4002 Eska™ Premier Duplex 1.0 mm Core Optical Fiber,<br>2.2 mm OD Polyethylene Jacket,<br>5.0 mm OD Polyvinyl Chloride Sheathed,<br>V-2Y Y 2P980/1000

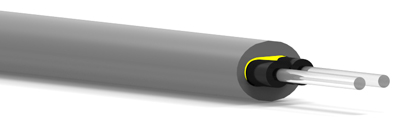

Sectional View

Application: Heavy duty, dual jacket, duplex cable for industrial data applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: GHEV4002



Part Number: GHEV4002
Price (500 m per spool)

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Special order
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 2

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 960 - 1060
Approximate Weight g/m 23
  Buffer/Jacket
Material and Color Polyethylene (black)/ Polyvinyl Chloride (gray)
Indication on Jacket Eska™ Premier, pink

Unit Value
Outer Diameter mm 5.0 x 6.0 ± .2
Fiber Tensile Strength N 195
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 75 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .17 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .19 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 40
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 195
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m 0.4
