GHEV4001

Eska™ Premier 1.0 mm Core Optical Fiber,
Polyethylene Buffered,
3.0 mm OD Polyvinyl Chloride Sheathed,
V-2Y Y 1P980/1000


GHEV4001 Eska™ Premier 1.0 mm Core Optical Fiber,<br>Polyethylene Buffered,<br>3.0 mm OD Polyvinyl Chloride Sheathed,<br>V-2Y Y 1P980/1000

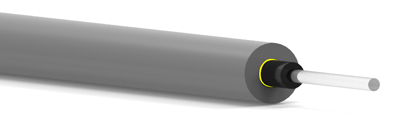

Sectional View

Application: Heavy duty, dual jacket, simplex cable for industrial data applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: GHEV4001



Part Number: GHEV4001
Price (500 m per spool)

 1 to 2 $ 738.15
 3 to 9 $ 692.01
 10 to 19 $ 634.56
 20 to 39 $ 573.04
 40 to 99 $ 510.30
 100+ $ 459.36

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Box Size (mm): 470 x 470 x 180
Gross Weight* (kg): 6.7
* cable + Spool + box

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 9.0
  Buffer/Jacket
Material and Color Polyethylene (black)/ Polyvinyl Chloride (gray)
Indication on Jacket Eska™ Premier, Pink

Unit Value
Outer Diameter mm 3.0 ± .1
Fiber Tensile Strength N 120
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 75 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .17 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .19 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 35
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 120
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m 0.4
