GH4002

Eska™ Premier Duplex 1.0 mm Core Optical Fiber,
2.2 mm OD Polyethylene Jacket,
V-2Y 2x1P980/1000


GH4002 Eska™ Premier Duplex 1.0 mm Core Optical Fiber,<br>2.2 mm OD Polyethylene Jacket,<br>V-2Y 2x1P980/1000

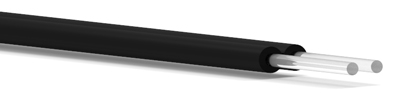

Sectional View

Application: General purpose duplex cable for industrial data applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: GH4002

Alternative Product: TC-1000W



Part Number: GH4002
Price (500 m per spool)

 1 to 2 $ 876.92
 3 to 9 $ 850.00
 10 to 19 $ 815.30
 20 to 39 $ 791.67
 40 to 49 $ 770.83
 50+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: 81 0026
Price (per meter)

  $ 3.13
Quantity



Box Size (mm): 365 x 365 x 160
Gross Weight* (kg): 5.6
* cable + Spool + box

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 2

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 8.0
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket Eska™ Premier, pink

Unit Value
Outer Diameter mm 2.2 x 4.4 ± .1
Fiber Tensile Strength N 140
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 75 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .17 Max
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .19 Max
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 25
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 140
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 2
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m 0.4

Copyright 2000 - 2024, All Rights Reserved Industrial Fiber Optics
