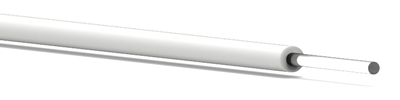

GH4001-TREska™ Premier Simplex Optical Fiber Cable, Industrial 1.0 mm Core Optical Cable, Transparent Polyethylene Jacket 2.2 mm OD |
Application: Industrial simplex cable for general purpose industrial temperature data and sensor applications. Manufacturer: Mitsubishi Chemical Co. Part Number: GH4001-TR Alternative Product: TC-1000(TN) |
|
Part Number: GH4001-TR Price (1000 m per spool) |
|
|
Feet to Meters Converter
Type a value in the Feet field to convert to Meters: Meters: |
| Box Size (mm): |
| Gross Weight* (kg): 0 |

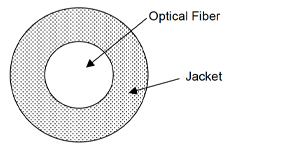

| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
|
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55° ~ 85° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55° ~ 85° C | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | + 75 Max. | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .17 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | .19 Max. | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 25 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 70 | ||
| Twisting Strength |
Loss Increment <1 dB [ Sample Length: 1 m Tensile Force: 4.9 N ] |
Times | 5 | ||
| Impact Strength |
Loss Increment <1 dB [ Sample Length: 1 m JIS C 6861 ] |
N.m | 0.4 | ||
