SH1048

Super Eska™ High-Performance
.265 mm Core Plastic Optical Fiber Bundle,
3.0 mm OD Polyethylene Jacket

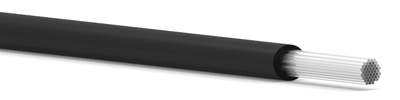

SH1048 Super Eska™ High-Performance<br>.265 mm Core Plastic Optical Fiber Bundle,<br>3.0 mm OD Polyethylene Jacket

Sectional View

Application: General purpose, jacketed multi-fiber bundle for sensor applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: SH1048



Part Number: SH1048
Price (500 m per spool)

 1 to 2 $ 1,350.00
 3+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: IF C LG48
Price (per meter)

  $ 3.13
Quantity



Box Size (mm): 365 x 365 x 160
Gross Weight* (kg): 5.3
* cable + Spool + box

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 48

Unit Value
Core Diameter μm 231 - 279
Cladding Diameter μm 241 - 289
Approximate Weight g/m 7.3
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket Super Eska™, Blue

Unit Value
Outer Diameter mm 3.0 ± .1
Fiber Tensile Strength N 70
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 60 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .65 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .70 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 5
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 70
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
