SH1032

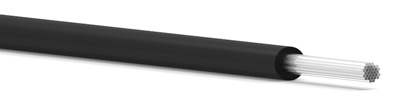

Super Eska™ High-Performance |
Application: General purpose, jacketed multi-fiber bundle for sensor applications Manufacturer: Mitsubishi Chemical Co. Part Number: SH1032
|
Purchase by the Spool
Part Number:
SH1032
Spool Length:
500 m per spool
SH1032
Spool Length:
500 m per spool
| Quantity | Unit Price |
|---|---|
| 1 to 2 | $ 775.92 |
| 3 to 4 | $ 741.69 |
| 5 to 9 | $ 720.50 |
| 10 to 19 | $ 650.00 |
| 20 to 24 | $ 615.00 |
| 25+ | Call for Quote |
Country-of-origin tariff
added at checkout.
added at checkout.
Purchase by the Meter
Part Number:
IF C LG32
IF C LG32
| Meter(s) | Unit Price |
|---|---|
| 1+ | $ 3.87 |
| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
|
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55° ~ 70° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55° ~ 70° C | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | + 60 Max. | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .65 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | .70 Max. | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 5 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 70 | ||
| Twisting Strength |
Loss Increment <1 dB [ Sample Length: 1 m Tensile Force: 4.9 N ] |
Times | 5 | ||
