SH1009

Super Eska™ High-Performance
.265 mm Core Plastic Optical Fiber Bundle,
1.25 mm OD Polyethylene Jacket

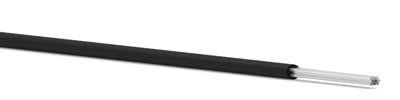

SH1009 Super Eska™ High-Performance<br>.265 mm Core Plastic Optical Fiber Bundle,<br> 1.25 mm OD Polyethylene Jacket

Sectional View

Application: General purpose, jacketed multi-fiber bundle for sensor applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: SH1009



Part Number: SH1009
Price (500 m per spool)

 1 to 2 $ 1,008.00
 3 to 9 $ 945.00
 10 to 19 $ 921.95
 20 to 39 $ 844.94
 40 to 99 $ 816.13
 100+ $ 756.00

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 9

Unit Value
Core Diameter μm 217 - 263
Cladding Diameter μm 227 - 273
Approximate Weight g/m 1.3
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 1.25 ±.05
Fiber Tensile Strength N 27
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 60 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .65 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .70 Max
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 5
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 27
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
