SHEV4001-5.0

Super Eska™ 1.0 mm Core Optical Fiber,
5.0 mm OD Polyethylene Buffered,
Polyvinyl Chloride Sheathed,
V-2Y Y 2P980/1000

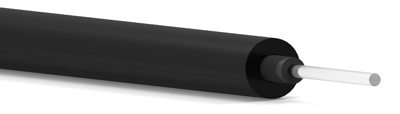

SHEV4001-5.0 Super Eska™ 1.0 mm Core Optical Fiber,<br>5.0 mm OD Polyethylene Buffered,<br>Polyvinyl Chloride Sheathed,<br>V-2Y Y 2P980/1000

Sectional View

Application: Indoor/Outdoor, drag chain, chemical and UV resistant

Manufacturer: Mitsubishi Chemical Co.

Part Number: SHEV4001-5.0



Part Number: SHEV4001-5.0
Price (500 m per spool)

 1 to 2 $ 928.80
 3 to 9 $ 900.00
 10 to 19 $ 830.77
 20 to 39 $ 771.43
 40 to 99 $ 756.00
 100+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 27
  Buffer/Jacket
Material and Color Polyethylene (black)/ Polyvinyl Chloride (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 5.0 ± .2
Fiber Tensile Strength N 70
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 40° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 40° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 60 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .19 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .21 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 35
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 70
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m 0.4
