SH1001-1.0

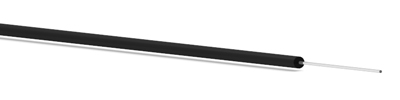

Super Eska™ 0.25 mm Core Optical Fiber,
1.0 mm OD Polyethylene Jacket,
V-2Y 1P240/250


SH1001-1.0 Super Eska™ 0.25 mm Core Optical Fiber,<br>1.0 mm OD Polyethylene Jacket,<br>V-2Y 1P240/250

Sectional View

Application: General purpose simplex cable for sensor applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: SH1001-1.0



Part Number: SH1001-1.0
Price (1000 m per spool)

 1 to 2 $ 933.43
 3 to 9 $ 882.09
 10 to 19 $ 816.75
 20 to 39 $ 784.08
 40 to 99 $ 751.41
 100+ $ 718.74

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: 81 0116
Price (per meter)

  $ 1.75
Quantity



Box Size (mm): 365 x 365 x 160
Gross Weight* (kg): 2.3
* cable + Spool + box

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 217 - 263
Cladding Diameter μm 227 - 273
Approximate Weight g/m 0.7
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 1.0 ± .05
Fiber Tensile Strength N 4
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 60 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .7 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .73 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 5
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 4
