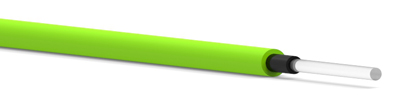

TCN-1000-15-23N(24G)

Asahi MOST High Temperature,
Automotive 1.0 mm Core Optical Cable,
1.5 mm OD Polyamide 12 Inner Jacket,
2.3 mm OD Green Polyamide Outer Jacket


TCN-1000-15-23N(24G) Asahi MOST High Temperature, Automotive Optical Cable, Polyamide 12 Inner Jacket,<br>Green Polyamide Outer Jacket

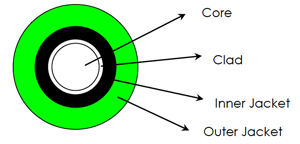

Sectional View

Application:

Manufacturer: Asahi Kasei

Part Number: TCN-1000-15-23N(24G)


Part Number:TCN-1000-15-23N(24G)
Price (2000 m per spool)

 1 to 9 $ 1,685.71
 10+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Part Number: 81 0586
Price (per meter)

   $ 1.55
Quantity



Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .5
Number of Fibers 1

Unit Value
Cladding Diameter μm 955-1045
-->
  Buffer/Jacket
Material and Color Inner Polyamide 12 (black)
Outer Polyamide (green)
Indication on Jacket None

Unit Value
Outer Diameter mm 2.3 mm
Fiber Tensile Strength N 150
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C N/R
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .20 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 30
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 150
