SHCN-500-10(E)

Asahi High 0.6 NA, High Temperature,
0.5 mm Core Simplex Cable,
Polyamide 12 1.0 mm OD Jacket


SHCN-500-10(E) Asahi High 0.6 NA, High Temperature Simplex Cable, Polyamide 12 Jacket

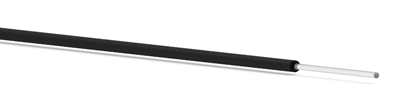

Sectional View

Application: Aerospace, medical and sensing applications requiring simplex fiber cord with a high numerical aperture. Recommended for applications requiring smaller bend radii than standard POF.

Manufacturer: Asahi Kasei

Part Number: SHCN-500-10(E)



Part Number:SHCN-500-10(E)
Price (1000 m per spool)

 1 to 2 $ 1,369.23
 3 to 5 $ 1,271.43
 6 to 9 $ 1,107.69
 10 to 19 $ 1,074.63
 20+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Special order.
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .60
Number of Fibers 1

Unit Value
Cladding Diameter μm 470-530
Approximate Weight g/m 1
-->
  Buffer/Jacket
Material and Color Polyamide 12
Indication on Jacket None

Unit Value
Outer Diameter mm 1.0 mm
Fiber Tensile Strength N 20
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C -55° ~ 105° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C -55° ~ 105° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C N/R
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .25 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m N/R
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 9
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 20

Copyright 2000 - 2024, All Rights Reserved Industrial Fiber Optics
