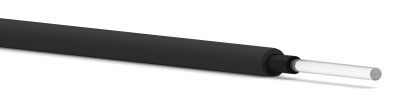

ECF-1000(02)
Asahi-Kasei 0.6 NA, High Temperature, |
Application: Aerospace, medical and sensing applications requiring simplex fiber cord with a high numerical aperture. Recommended for applications requiring smaller bend radii than standard POF. Manufacturer: Asahi Kasei Part Number: ECF-1000(02)
|
Purchase by the Spool
Part Number:
ECF-1000(02)
Spool Length:
500 m per spool
ECF-1000(02)
Spool Length:
500 m per spool
| Quantity | Unit Price |
|---|---|
| 1 to 2 | $ 953.85 |
| 3 to 4 | $ 885.70 |
| 5 to 9 | $ 684.62 |
| 10 to 15 | $ 664.10 |
| 16 to 19 | $ 635.71 |
| 20+ | Call for Quote |
Country-of-origin tariff
added at checkout.
added at checkout.
Special order.
| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
| -->
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | -55° ~ 105° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | -55° ~ 105° C | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | N/R | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .25 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | N/R | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 15 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 80 | ||
