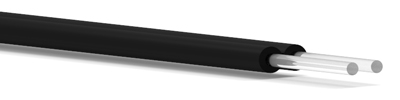

SC-1000W(FA)

Asahi High NA,
Industrial 1.0 mm Core Optical Cable,
Polyethylene/Special Resin 2.13 mm OD Jacket


SC-1000W(FA) Asahi High 0.6 NA,<br>Industrial Optical Cable, Polyethylene/Special Resin Jacket

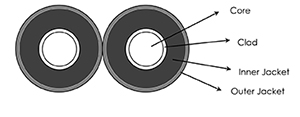

Sectional View

Application: Industrial, aerospace, medical and sensing applications requiring simplex fiber cord with a high numerical aperture. Recomended for applications requiring small bend radii than standard POF.

Manufacturer: Asahi Kasei

Part Number: SC-1000W(FA)



Part Number:SC-1000W(FA)
Price (500 m per spool)

 1 to 2 $ 1,814.52
 3 to 4 $ 1,516.13
 5 to 9 $ 1,446.15
 10 to 14 $ 1,342.86
 15 to 19 $ 1,305.56
 20+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

UL-rated cable upon special request.
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .60
Number of Fibers 2

Unit Value
Core Diameter μm 910 - 1030
Cladding Diameter μm 940 - 1060
-->
  Buffer/Jacket
Material and Color Polyethylene/Special Resin (Black)
Indication on Jacket Dotted Line (Blue)

Unit Value
Outer Diameter mm 2.1 x 4.3 ± .07
Fiber Tensile Strength N 200
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C N/R
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .16 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m N/R
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 20
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 200
