SC-500-22

Asahi High 0.6 NA,
Industrial 0.5 mm Core Optical Cable,
Polyethylene 2.2 mm OD Jacket

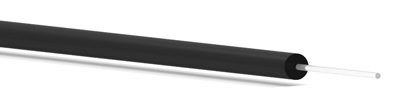

SC-500-22 Asahi High 0.6 NA, Industrial Optical Cable, Polyethylene Jacket

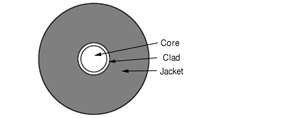

Sectional View

Application: Aerospace, medical and sensing applications requiring simplex fiber cord with a high numerical aperture. Recommended for applications requiring smaller bend radii than standard POF.

Manufacturer: Asahi Kasei

Part Number: SC-500-22


Part Number:SC-500-22
Price (500 m per spool)

 1 to 2 $ 592.31
 3 to 4 $ 550.00
 5 to 9 $ 300.00
 10 to 19 $ 313.43
 20+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Special Order
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .60
Number of Fibers 1

Unit Value
Cladding Diameter μm 470-530
Approximate Weight g/m 1
-->
  Buffer/Jacket
Material and Color Polyethylene
Indication on Jacket None

Unit Value
Outer Diameter mm 2.2 mm
Fiber Tensile Strength N 20
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 80° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 80° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C N/R
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .16 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 20
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 20
