Home > Optical Fiber and Cable > Asahi Kasei Single-Core Cable > TCV-1000

TCV-1000

Asahi UL-rated, General Purpose Industrial,
1.0 mm Core Simplex Cable, Polyvinyl Chloride
2.2 mm OD Jacket, V-Y 1P980/1000

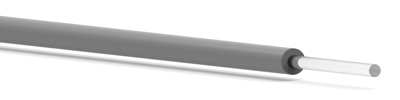

TCV-1000 Asahi UL-rated, General Purpose, Industrial Simplex Cable, Polyvinyl Chloride Jacket, V-Y 1P980/1000

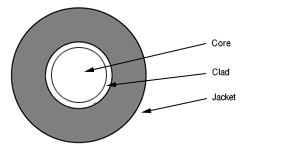

Sectional View

Application: Industrial simplex cable for general purpose industrial temperature data and sensor applications. Lowest cost of all the industrial cable options.

Manufacturer: Asahi Kasei

Part Number: TCV-1000

Alternative Product: GHV4001


Part Number:TCV-1000
Price (500 m per spool)

 1 to 2 $ 391.66
 3 to 9 $ 383.24
 10 to 19 $ 361.54
 20 to 39 $ 350.74
 40 to 49 $ 335.71
 50+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .485
Number of Fibers 1

Unit Value
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 5.6
-->
  Buffer/Jacket
Material and Color Polyvinyl Chloride
Indication on Jacket

Unit Value
Outer Diameter mm 2.2 mm
Fiber Tensile Strength N 90
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 40° ~ 80° CC
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 40° ~ 80° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C + 75 Max.
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .16 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 30
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 90
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times N/R
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]		 N.m N/R
