Home > Optical Fiber and Cable > Asahi Kasei Single-Core Cable > TCU-1000W

TCU-1000W

Asahi UL-rated, Zero Halogen Industrial,
1.0 mm Core Duplex Cable, Halogen Free
Flame Retardant Polyethylene,
2.2 mm OD Jacket, V-H 2x1P980/1000

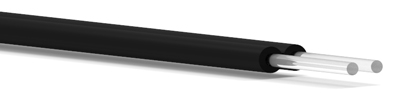

TCU-1000W Asahi UL-rated, Zero Halogen, Industrial Duplex Cable, Halogen-Free Flame-Retardant, Polyethylene Jacket, V-H 2x1P980/1000

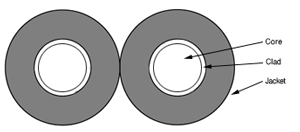

Sectional View

Application: Industrial duplex cable for industrial data applications, UL VW-1 1581 Style No. 5310 rating with halogen free material/

Manufacturer: Asahi Kasei

Part Number: TCU-1000W


Part Number:TCU-1000W
Price (500 m spool)

 1 to 2 $ 669.23
 3 to 9 $ 649.15
 10 to 14 $ 621.43
 15 to 19 $ 607.69
 20+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
UL-rated flame-retardant grade
Limited Stock
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .5
Number of Fibers 2

Unit Value
Cladding Diameter μm 940-1060
Approximate Weight g/m 11
-->
  Buffer/Jacket
Material and Color Halogen-free Flame-retardant PE
Indication on Jacket RU AWM STYLE 5292 VW-1 80ºC E116331 ASAHI KASEI E-MATERIALS CORPORATION; Blue

Unit Value
Outer Diameter mm 2.2 x 4.4 ± .07
Fiber Tensile Strength N 180
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 80° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 80° C
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C + 75 Max.
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .17 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m .19 Max.
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 30
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 180
