TCU-1000

Asahi UL-rated, Zero halogen 1.0 mm core,
Industrial Optical Cable, Halogen-free
Flame-retardant PE 2.2 mm OD Jacket


TCU-1000 Asahi UL-rated, Zero Halogen, Industrial Simplex Cable, Halogen-Free Flame-Retardant, Polyethylene Jacket,<br>

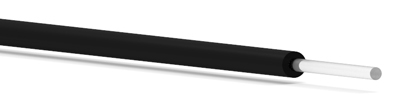

Sectional View

Application: Industrial simplex cable for industrial data applications, Halogen-free Flame-retardant material

Manufacturer: Asahi Kasei

Part Number: TCU-1000



Part Number:TCU-1000
Price (500 m per spool)

 1 to 2 $ 391.67
 3 to 4 $ 379.92
 5 to 9 $ 368.52
 10 to 14 $ 335.71
 15 to 19 $ 326.39
 20+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: 81 0529
Price (per meter)

  $ 1.60
Quantity



Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 5.1
-->
  Buffer/Jacket
Material and Color Halogen-free Flame-retardant PE
Indication on Jacket [RU TCU-1000 ASAHI KASEI]

Unit Value
Outer Diameter mm 2.2 mm
Fiber Tensile Strength N 90
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 80° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 80° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 80 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .16 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .19 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 25
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 90
