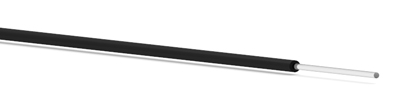

DC-500
Asahi General Purpose Simplex, |
Application: Simplex cable for general purpose commerical temperature data and sensor applications. Manufacturer: Asahi Kasei Part Number: DC-500 Alternative Product: SH2001 |
|
Part Number:DC-500 Price (1000 m per spool) |
|
Feet to Meters Converter
Type a value in the Feet field to convert to Meters: Meters: |
| Box Size (mm): |
| Gross Weight* (kg): 0 |
| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
| -->
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55° ~ 70° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55° ~ 70° C | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | N/R | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .20 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | N/R | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 10 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 20 | ||
