DC-265-10

Asahi General Purpose Simplex,
Commercial 0.265 mm core Optical Cable,
Polyethylene 1 mm OD Jacket

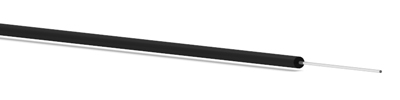

DC-265-10 Asahi General Purpose Simplex, Commercial Optical Cable, Polyethylene Jacket


Sectional View

Application: Commercial simplex cable for general purpose temperature data and sensor applications. Lowest cost of all the Asahi Kasei cable options.

Manufacturer: Asahi Kasei

Part Number: DC-265-10



Part Number:DC-265-10
Price (500 m per spool)

 1 to 2 $ 625.00
 3 to 5 $ 585.93
 6 to 9 $ 372.73
 10 to 14 $ 341.67
 15 to 19 $ 315.38
 20+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Cladding Diameter μm 238-292
Approximate Weight g/m 5.6
-->
  Buffer/Jacket
Material and Color Polyethylene
Indication on Jacket None

Unit Value
Outer Diameter mm 1.0 mm
Fiber Tensile Strength N N/R
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C N/R
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .45 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m N/R
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 5
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N N/R
