TB-1500

Asahi Optical Fiber, High-Performance,
Industrial Grade PMMA, 1.5 mm Diameter


TB-1500 Asahi Optical Fiber, High-Performance, Industrial Grade PMMA

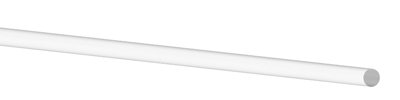

Sectional View

Application: High-performance optical fiber for lighting and sensor applications.

Manufacturer: Asahi Kasei

Part Number: TB-1500



Part Number:TB-1500
750 m per spool

 1 to 5 $ 0.00
 6+ $ 991.94

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Special Order

MINIMUM ORDER REQUIREMENT:
6 spools

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .50
Number of Fibers 1

Unit Value
Cladding Diameter μm 1410 - 1590
Approximate Weight g/m 2.1
Fiber Tensile Strength N 170
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C Not rated
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .15 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m Not rated
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm Not rated
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 170
