DB-1000

Asahi Optical Fiber, High-Performance,
Commercial Grade PMMA, 1.0 mm Diameter

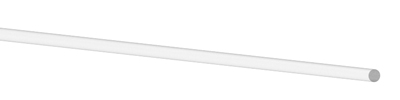

DB-1000 Asahi Optical Fiber, High-Performance, Commercial Grade PMMA


Sectional View

Application: General purpose fiber for lighting and sensor applications

Manufacturer: Asahi Kasei

Part Number: DB-1000

Alternative Product: SK-40



Part Number:DB-1000
1500 m per spool

 1 to 2 $ 664.28
 3 to 9 $ 631.06
 10 to 19 $ 321.42
 20 to 39 $ 305.35
 40+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .50
Number of Fibers 1

Unit Value
Cladding Diameter μm 940-1060
Approximate Weight g/m 1.1
Fiber Tensile Strength N 75
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 70° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C N/R
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .16 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m Not rated
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 20
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 75
