DB-400

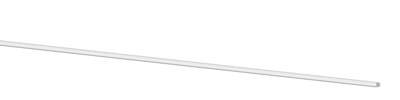

Asahi Optical Fiber, Commercial Grade PMMA, |
Application: Illumination and sensors. Manufacturer: Asahi Kasei Part Number: DB-400
|
|
Part Number:DB-400 10,000 m per spool |
|
Feet to Meters Converter
Type a value in the Feet field to convert to Meters: Meters: |
||||||||||||||||
|
|
||||||||||||||||||
|
Part Number: 81 0536 Per meter |
$ 0.25 | |||||||||||||||||
| Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55° ~ 70° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55° ~ 70° C | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | N/R | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .25 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | Not rated | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 8 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 10 | ||
