MCQ-1500-27

613-core 1.5 mm Fused Multi-core Simplex Cable,
2.7 mm OD Polyethylene Jacket

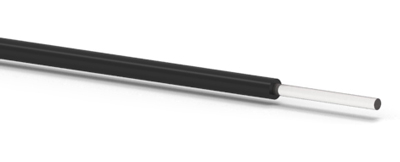

MCQ-1500-27 613-core Fused Multi-core Simplex Cable, Polyethylene Jacket

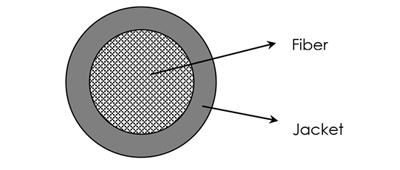

Sectional View

Application:

Manufacturer: Asahi Kasei

Part Number: MCQ-1500-27


Part Number: MCQ-1500-27
500 m per spool

 1 to 2 $ 2,769.23
 3 to 4 $ 2,647.06
 5 to 9 $ 2,507.69
 10 to 14 $ 2,328.57
 15 to 19 $ 2,263.89
 20+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Leadtime: estimated 3-4 weeks

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1
Number of Cores 613

Unit Value
Cladding Diameter μm 1410-1590
Approximate Weight g/m 5.6
  Buffer/Jacket
Material and Color Polyethyelene (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 2.7 ± .08
Fiber Tensile Strength N 150
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 60° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 60° C
No Deterioration in Optical Properties
[ under 85% RH condition ] 		° C N/R
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m 0.6
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 3
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N N/R
