MCQ-1000-13

613-core 1.0 mm Fused Multi-core Simplex Cable,
1.3 mm OD Polyethylene Jacket

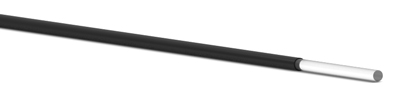

MCQ-1000-13 613-core Fused Multi-core Simplex Cable, Polyethylene Jacket


Sectional View

Application:

Manufacturer: Asahi Kasei

Part Number: MCQ-1000-13



Part Number: MCQ-1000-13
500 m per spool

 1 to 2 $ 1,923.08
 3 to 5 $ 1,785.71
 6 to 9 $ 1,653.85
 10 to 14 $ 1,604.23
 15 to 19 $ 1,535.71
 20+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Numerical Aperture 0.5
Number of Fibers 1
Number of Cores 613

Unit Value
Cladding Diameter μm 940-1060
Approximate Weight g/m 1.4
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 1.3 ± .07
Fiber Tensile Strength N 70
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 60° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 60° C
No Deterioration in Optical Properties
[ under 85% RH condition ]
° C N/R
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m 0.6
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m N/R
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 1
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N N/R
