SHMCSN-1000P-18-22PF(EB)

1.0 mm 217-core Fused Multi-Core Simplex Cable, 1.8 mm OD Polyamide 12 Inner Jacket, 2.2 mm OD Perfluoroalkoxy Alkane Outer Jacket

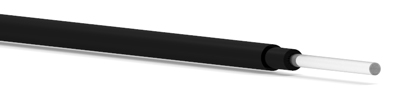

SHMCSN-1000P-18-22PF(EB) 217-core Fused Multi-Core Simplex Cable, Perfluoroalkoxy Alkane Outer Jacket, Polyamide 12 Inner Jacket

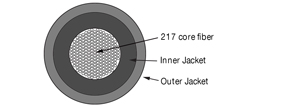

Sectional View

Application: Industrial and automotive networking, lighting and sensor applications. Recommended cable for small bend radii, high temperature operation and petrochemical requirements.

Manufacturer: Asahi Kasei

Part Number: SHMCSN-1000P-18-22PF(EB)


Part Number: SHMCSN-1000P-18-22PF(EB)
500 m per spool

 1 to 2 $ 2,769.00
 3 to 4 $ 2,662.00
 5 to 9 $ 2,581.00
 10 to 19 $ 2,443.75
 20+ Call for Quote

Quantity


   Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
New to product line. 105 degrees Celsius, Resistance to oil.

Leadtime: estimated 3-4 weeks

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.6
Number of Fibers 1
Number of Cores 217

Unit Value
Cladding Diameter μm 940 - 1060
  Buffer/Jacket
Material and Color Inner Polyamide 12 (Black)
Outer Perfluoroalkoxy Alkane (Black)
Indication on Jacket None

Unit Value
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 160
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 105° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 105° C
No Deterioration in Optical Properties
[ under 85% RH condition ] 		° C N/R
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m 0.6
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 2
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N N/R
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times N/R
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]		 N.m N/R
