SMCS-1000-15-22N

37-core Fused Multi-Core Simplex Cable, Polyamide 12 Outer Jacket, Special Resin Inner Jacket


SMCS-1000-15-22N 37-core Fused Multi-Core, High Bandwidth Simplex Cable, Polyethylene Jacket

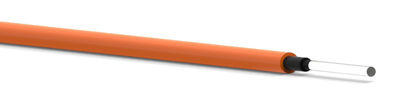

Sectional View

Application: All applications requiring higher bandwidth than 1.0 mm POF and a small bend radii. Ideal fiber for Fast Ethernet or network applications.

Manufacturer: Asahi Kasei

Part Number: SMCS-1000-15-22N



Part Number: SMCS-1000-15-22N
500 m per spool

 1 to 2 $ 2,769.23
 3 to 4 $ 2,647.06
 5 to 9 $ 2,507.69
 10 to 14 $ 2,328.57
 15 to 19 $ 2,263.89
 20+ Call for Quote

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

Special Order
Estimated LT: 3-4 weeks

Used for data communications applications.

Alternative to Eska MH4002.

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.6
Number of Fibers 1
Number of Cores 37

Unit Value
Cladding Diameter μm 940 - 1060
  Buffer/Jacket
Material and Color Polyamide 12 (Orange)
Indication on Jacket None

Unit Value
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 150
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 85% RH condition ]
° C N/R
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m 0.6
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m N/R
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 2
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N N/R
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times N/R
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m N/R
