Home > Optical Fiber and Cable > Asahi Kasei E-Materials > Asahi Kasei Multi-Core Cable > SMCK-1000P

SMCK-1000P

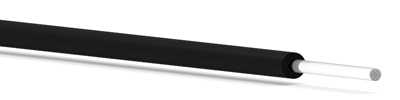

19-core High NA, 1.0 mm Fused Multi-Core Simplex Cable, 2.2 mm OD Polyethylene Jacket


SMCK-1000P High NA, 19-core Fused Multi-Core Simplex Cable, Polyethylene Jacket

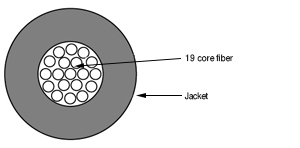

Sectional View

Application: Industrial simplex networking and sensor applications requiring higher bandwidth, or a small bend radii is required than standard solid core POF is rated for.

Manufacturer: Asahi Kasei

Part Number: SMCK-1000P


Part Number: SMCK-1000P
500 m per spool

 1 to 2 $ 1,615.38
 3 to 4 $ 1,550.77
 5 to 9 $ 1,346.15
 10 to 19 $ 1,305.77
 20 to 24 $ 1,250.00
 25+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:


Meters:
Estimated LT: 3-4 weeks

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step
Numerical Aperture 0.6
Number of Fibers 1
Number of Cores 19

Unit Value
Cladding Diameter μm 920 - 1080
  Buffer/Jacket
Material and Color Polyethylene (black)
Indication on Jacket None

Unit Value
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 80
Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55° ~ 85° C
No Deterioration in Optical Properties
[ under 85% RH condition ] 		° C N/R
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m 0.5 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m N/R
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 2
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N N/R
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times N/R
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]		 N.m N/R
