BC04340
Fiber Cable, OFS fiber cable Duplex 200/230 µm Step-Index Plenum, Zipcord, 2.2 mm OD PVC jacket

BC04340 Fiber Cable, OFS fiber cable Duplex 200/230 µm Step-Index

Manufacturer: OFS
Manufacturer's PDF Data Sheet
Transmission graph
RoHS Certification: No

Structure
	Core Material	Silica

	Cladding Material	Polymer

	Core Refractive Index	1.452 @ 850 nm

	Refractive Index Profile	Step-index

	Numerical Aperture	.37

	Number of Fibers	2

		Unit	Value

	Core Diameter	µm	200 ± 4

	Cladding Diameter	µm	220 - 230

	Approximate Weight	g/m	11

Jacket
	Material and Color	PVC/ Blue

	Indication on Jacket	None

		Unit	Value

	Sub-unit Diameter	mm	2.2

	Outer Diameter	mm	2.2 x .4.6

	Fiber Tensile Strength	N	22

Applications: Indoor Industrial

Spool Length: n/a

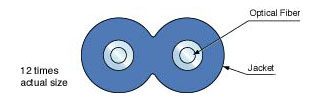

Sectional view of duplex fiber cable 12 times actual size: blue outer jacket and optical fiber inner circles

Sectional View

Part Number: BC04340
Price (per meter)

1 to 99	$ 3.96
100 to 249	$ 3.30
250 to 499	$ 3.11
500 to 999	$ 2.69
1,000 to 1,999	$ 1.93
2,000+	$ 1.72

No set spool lengths

Performance

Criteria for Acceptance
and/or
[ Test Conditions ]

Unit

Value

Maximum Rating	Storage Temperature	No Physical Deterioration [ in a Dry Atmosphere ]	° C	-20 to +75

	Operating Temperature	No Deterioration in Optical Properties [ in a Dry Atmosphere ]	° C	0 to +75

		No Deterioration in Optical Properties [ under 95% RH condition ]	° C	0 to +75

Optical Properties	Transmission Loss	(650 nm Collimated Light) [ 25°C 50% RH ]	dB/m	< 6 dB/km @ 850 nm

	Transmission Loss under 95% RH	(650 nm Collimated Light) [ Operating Temperature ]	dB/m

Mechanical Characteristics	Minimum Bend Radius	Loss Increment <0.5 dB [ A Quarter Bend ]	mm	15

	Repeated Bending Endurance	Loss Increment <1 dB [ Conforms to JIS C 6861 ]	Times

	Tensile Strength	Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ]	N	22

	Twisting Strength	Loss Increment <1 dB [ Sample Length: 1 m Tensile Force: 4.9 N ]	Times

	Impact Strength	Loss Increment <1 dB [ Sample Length: 1 m JIS C 6861 ]	N.m
