GHTT4002

Eska; Premier Duplex Optical Fiber Cable, Polyethylene Jacket, Aramid Fiber Strength Member, Polyvinyl Chloride Sheathed, V-2Y(ZN)Y 2P980/1000 Eska™ Premier 1.0 mm Core Duplex Optical Fiber,
2.2 mm OD Polyethylene Jacket,
Aramid Fiber Strength Member,
6.0 mm OD Polyvinyl Chloride Sheathed,
V-2Y(ZN)Y 2P980/1000


GHTT4002 Eska; Premier Duplex Optical Fiber Cable, Polyethylene Jacket, Aramid Fiber Strength Member,  Polyvinyl Chloride Sheathed, V-2Y(ZN)Y 2P980/1000

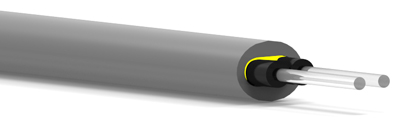

Sectional View

Application: Heavy-duty simplex cable with aramid strength members for industrial data applications

Manufacturer: Mitsubishi Chemical Co.

Part Number: GHTT4002



Part Number: GHTT4002
Price (400 m per spool)


 1 to 2 $ 2,615.38
 3 to 9 $ 2,536.92
 10 to 19 $ 2,428.57
 20 to 24 $ 2,355.71
 25+ Call for Quote

  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:

  Box Size (mm):
  Gross Weight* (kg): 0


  Structure
Core Material Polymethyl -Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 2

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 38
  Buffer/Jacket
Material and Color Polyethylene (black)/ Polyvinyl Chloride (gray)
Indication on Jacket Pink strip on one of internal pair; Eska™ Premier on outer jacket

Unit Value
Outer Diameter mm 6.0 ± .2
Fiber Tensile Strength N 420
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 75 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .17 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .19 Max
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 40
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 420
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 2
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m 0.4
