GHTT4001

Eska; Premier Simplex
Optical Fiber Cable, Polyethylene Jacket, Aramid Fiber Strength Member, Polyvinyl Chloride Sheathed, V-2Y(ZN)Y 1P980/1000 Eska™ Premier 1.0 mm Core Simplex Optical Fiber Cable, 2.2 mm OD Polyethylene Jacket, Aramid Fiber Strength Member, 5.0 mm OD Polyvinyl Chloride Sheathed, V-2Y(ZN)Y 1P980/1000


GHTT4001 Eska; Premier Simplex<br>Optical Fiber Cable, Polyethylene Jacket, Aramid Fiber Strength Member, Polyvinyl Chloride Sheathed, V-2Y(ZN)Y 1P980/1000

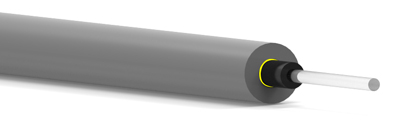

Sectional View

Application: Heavy duty simplex cable for industrial data applications with aramid strength members

Manufacturer: Mitsubishi Chemical Co.

Part Number: GHTT4001



Part Number: GHTT4001
Price (500 m per spool)


 1 to 2 $ 925.71
 3 to 9 $ 864.00
 10 to 19 $ 810.00
 20 to 39 $ 780.72
 40 to 99 $ 762.35
 100+ $ 745.20

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: 81 0136
Price (per meter)

  $ 3.96
Quantity


  Box Size (mm):
  Gross Weight* (kg): 0



  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Core Diameter μm 920 - 1040
Cladding Diameter μm 940 - 1060
Approximate Weight g/m 27
  Buffer/Jacket
Material and Color Polyethylene (black)/Polyvinyl Chloride (gray)
Indication on Jacket Eska™ Premier; Pink

Unit Value
Outer Diameter mm 5.0 ± .2
Fiber Tensile Strength N 245
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 40° ~ 85° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C + 75 Max.
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m .17 Max.
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m .19 Max.
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 40
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 245
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times 5
