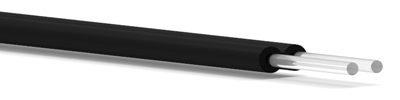

Super Eska™ Polyethylene Jacketed Optical Fiber Cord V-2Y 2x1P980/1000  Manufacturer: Mitsubishi Rayon Co. LTD. Manufacturer's PDF Data Sheet Transmission graph RoHS Certification: Yes
|
Applications: General purpose duplex cable for data applications Spool Length: 500 m
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | ||
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55 ~ 70 | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55 ~ 70 | ||
|
No Deterioration in Optical Properties [ under 95% RH condition ] |
° C | + 60 Max. | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | .19 Max. | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | .21 Max. | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 25 | |
| Repeated Bending Endurance |
Loss Increment <1 dB [ Conforms to JIS C 6861 ] |
Times | 10,000 | ||
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | 140 | ||
| Twisting Strength |
Loss Increment <1 dB [ Sample Length: 1 m Tensile Force: 4.9 N ] |
Times | 5 | ||
| Impact Strength |
Loss Increment <1 dB [ Sample Length: 1 m JIS C 6861 ] |
N.m | 0.4 | ||
