MCS-1000P-13

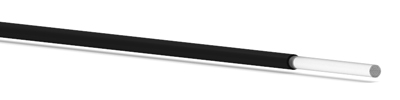

217-core 1.0 mm Fused Multi-core Simplex Cable, |
Application: Industrial, commercial and medical networking and sensor applications requiring smaller bend radii than single core fiber allows. Manufacturer: Asahi Kasei Part Number: MCS-1000P-13 |
|
Part Number: MCS-1000P-13 500 m per spool |
|
Feet to Meters Converter
Type a value in the Feet field to convert to Meters: Meters: |
| Structure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Buffer/Jacket |
|
|
||||
| Performance |
Criteria for Acceptance and/or [ Test Conditions ] |
Unit | Value | |
| Maximum Rating |
Storage Temperature |
No Physical Deterioration [ in a Dry Atmosphere ] |
° C | - 55° ~ 60° C | |
| Operating Temperature |
No Deterioration in Optical Properties [ in a Dry Atmosphere ] |
° C | - 55° ~ 60° C | ||
|
No Deterioration in Optical Properties [ under 85% RH condition ] |
° C | N/R | |||
| Optical Properties |
Transmission Loss | (650 nm Collimated Light) [ 25°C 50% RH ] |
dB/m | 0.6 | |
| Transmission Loss under 95% RH |
(650 nm Collimated Light) [ Operating Temperature ] |
dB/m | N/R | ||
| Mechanical Characteristics |
Minimum Bend Radius |
Loss Increment <0.5 dB [ A Quarter Bend ] |
mm | 2 | |
| Tensile Strength |
Tensile Force at 5% [ Elongation: Conforms to JIS C. 6861 ] |
N | N/R | ||
| Twisting Strength |
Loss Increment <1 dB [ Sample Length: 1 m Tensile Force: 4.9 N ] |
Times | N/R | ||
| Impact Strength |
Loss Increment <1 dB [ Sample Length: 1 m JIS C 6861 ] |
N.m | N/R | ||
