MCQ-1000

613-core 1.0 mm Fused Multi-core Simplex Cable,
2.2 mm OD Polyethylene Jacket


MCQ-1000 613-core Fused Multi-core Simplex Cable, Polyethylene Jacket
<br><br>Leadtime:estimated 3-4 weeks

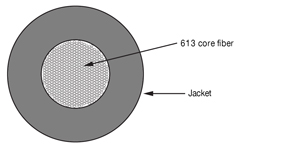

Sectional View

Application:

Manufacturer: Asahi Kasei

Part Number: MCQ-1000



Part Number:
MCQ-1000
Price (500 m Per Spool)

 1 to 2 $ 1,785.71
 3 to 5 $ 1,666.67
 6 to 11 $ 1,433.33
 12 to 23 $ 1,343.75
 24+ $ 1,295.18

Quantity


  Feet to Meters Length Converter
Feet to Meters Converter
Type a value in the Feet field
to convert to Meters:



Meters:


Part Number: 81 0556
Price (per meter)

  $ 7.50
Quantity



Leadtime for spool: estimated 3-4 weeks

Limited Availability for part# 81 0556
Box Size (mm):
Gross Weight* (kg): 0

  Structure
Core Material PMMA
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Numerical Aperture 0.5
Number of Fibers 1

Unit Value
Cladding Diameter μm 940-1060
Fiber Tensile Strength N 80
Performance Criteria for Acceptance
and/or
[ Test Conditions ]
Unit Value
Maximum
Rating
Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ]
° C - 55° ~ 60° C
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ]
° C - 55° ~ 60° C
No Deterioration in Optical Properties
[ under 95% RH condition ]
° C N/R
Optical
Properties
Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]
dB/m 0.6
Transmission Loss
under 95% RH
(650 nm Collimated Light)
[ Operating Temperature ]
dB/m N/R
Mechanical
Characteristics
Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]
mm 1
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]
N 80
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]
Times n/r
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]
N.m N/R
