Eska™ Premier Chlorinated Polyethylene Jacketed Optical Fiber Cord High-Performance Plastic Optical Fiber

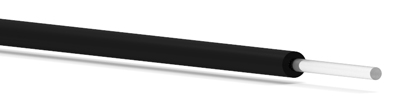

GHCP4001 Eska™ Premier Chlorinated Polyethylene Jacketed Optical Fiber Cord
Manufacturer: Mitsubishi Rayon Co. LTD.
Manufacturer's PDF Data Sheet
Transmission graph
RoHS Certification: Yes

  Structure
Core Material Polymethyl-Methacrylate Resin
Cladding Material Fluorinated Polymer
Core Refractive Index 1.49
Refractive Index Profile Step-index
Numerical Aperture .50
Number of Fibers 1
Unit Value
Core Diameter µm 920 - 1040
Cladding Diameter µm 940 - 1060
Approximate Weight g/m 5.6
  Jacket
Material and Color Chlorinated Polyethylene (black)
Indication on Jacket Blue, E89328-A Mitsubishi Rayon AWM 5310 80C VW-1
Unit Value
Sub-unit Diameter mm 0
Outer Diameter mm 2.2 ± .07
Fiber Tensile Strength N 70
  Applications: General purpose simplex cable for industrial data applications, UL VW-1 1581 Style No. 5310 rated

Spool Length: 500 m

Sectional View


Part Number: GHCP4001
Price (per spool)
Quantity


 1 to 2 $ 389.29
 3 to 9 $ 363.33
 10 to 19 $ 340.63
 20 to 39 $ 328.31
 40 to 99 $ 320.59
100+ $ 309.66

Part Number: 81 0119
Price (per meter)
Quantity


$1.75
Identical to Avago part number HFBR-EUS500 and exceeds the optical specification for Avago HFBR-RUS500.

 Performance Criteria for Acceptance
and/or
[ Test Conditions ] 		Unit Value
Maximum
Rating		 Storage Temperature No Physical Deterioration
[ in a Dry Atmosphere ] 		° C - 55 ~ 85
Operating Temperature No Deterioration in Optical Properties
[ in a Dry Atmosphere ] 		° C - 55 ~ 85
No Deterioration in Optical Properties
[ under 95% RH condition ] 		° C + 75 Max.
Optical
Properties		 Transmission Loss (650 nm Collimated Light)
[ 25°C 50% RH ]		 dB/m .17 Max.
Transmission Loss
under 95% RH		 (650 nm Collimated Light)
[ Operating Temperature ]		 dB/m .19 Max.
Mechanical
Characteristics		 Minimum Bend Radius Loss Increment <0.5 dB
[ A Quarter Bend ]		 mm 25
Repeated Bending
Endurance		 Loss Increment <1 dB
[ Conforms to JIS C 6861 ]		 Times 10,000
Tensile Strength Tensile Force at 5%
[ Elongation: Conforms to JIS C. 6861 ]		 N 70
Twisting Strength Loss Increment <1 dB
[ Sample Length: 1 m Tensile Force: 4.9 N ]		 Times 5
Impact Strength Loss Increment <1 dB
[ Sample Length: 1 m JIS C 6861 ]		 N.m 0.4
